Arduino Uno R4

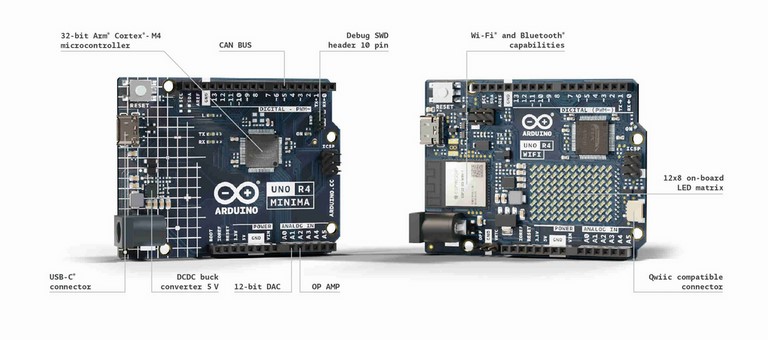

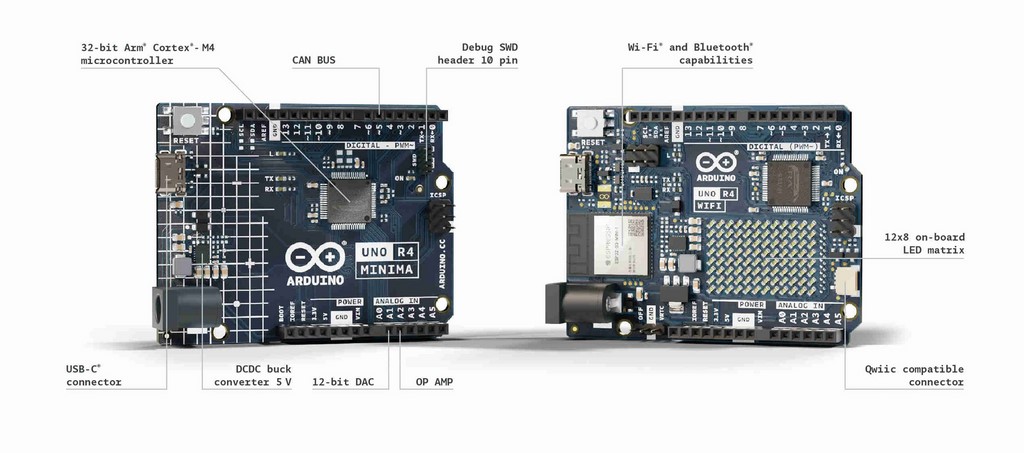

L'Arduino Uno R4 est proposé en deux versions:
- Arduino Uno R4 Minima
- Arduino Uno R4 Wifi
Cette carte est équipée du processeur ARM Cortex-M4 32 bits Renesas RA4M1, elle offre une augmentation importante de la puissance de traitement, de la mémoire et des fonctionnalités.
La version WiFi est livrée avec un module WiFi ESP32-S3 en plus du RA4M1.

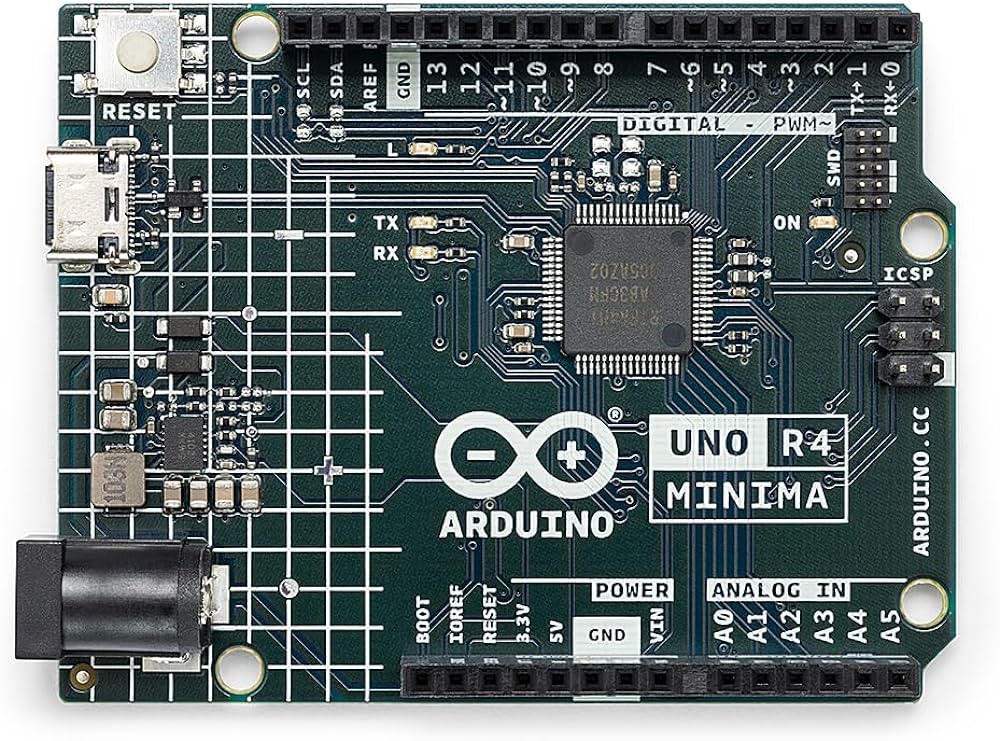

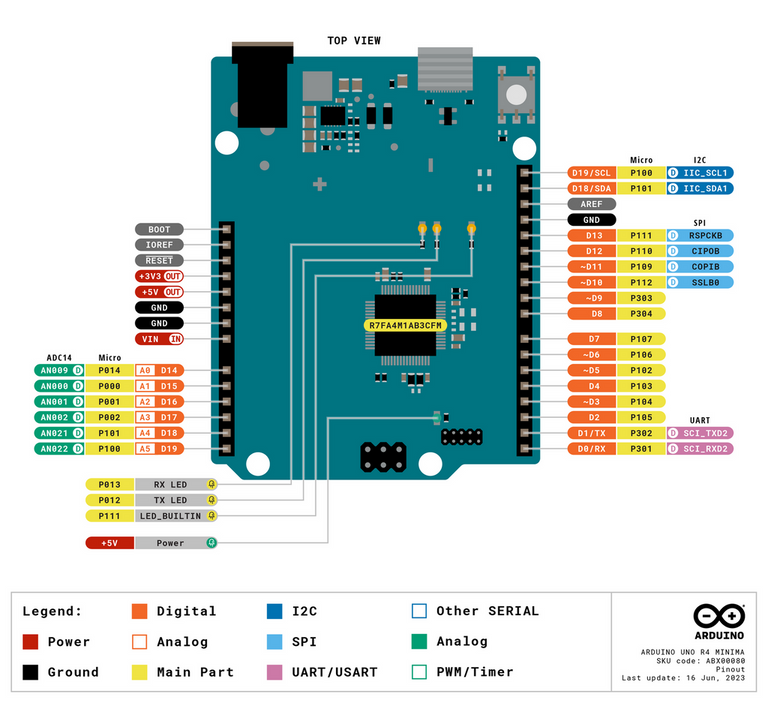

Arduino Uno R4 Minina
L'Arduino Uno R4 Minima
- USB-C connector
- RA4M1 from Renesas (Cortex-M4)
- HID device (emulate a mouse or a keyboard)
- Improved power section (up to 24 V through VIN)
- CAN bus
- DAC (12 bits)
- Op amp

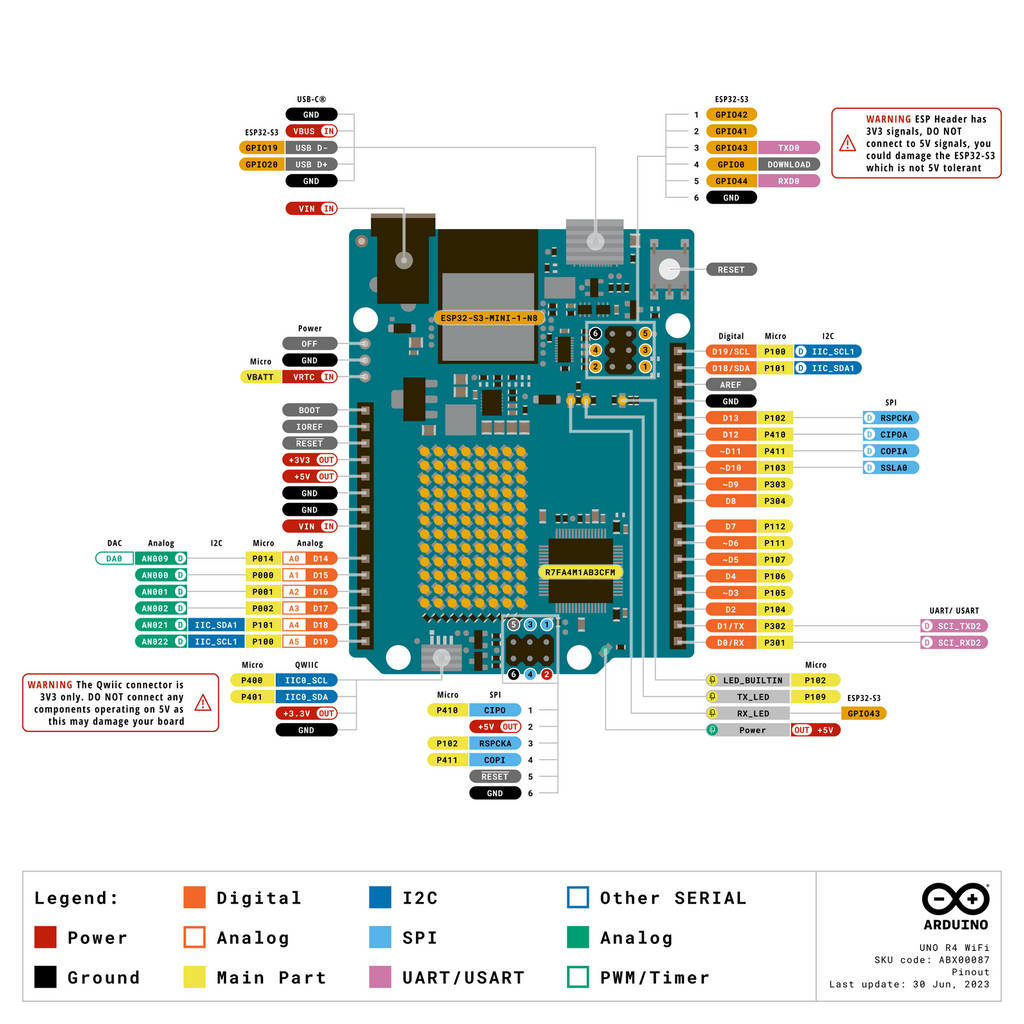

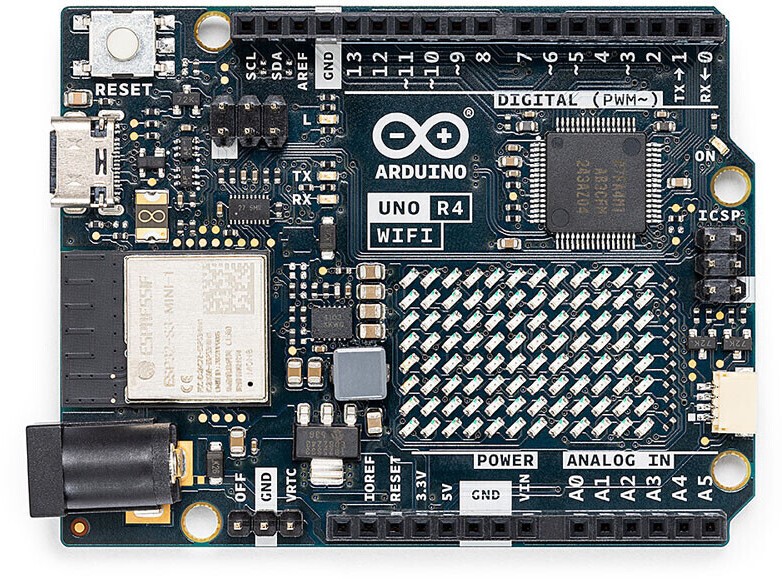

Arduino Uno R4 Wifi
L'Arduino Uno R4 Wifi
- USB-C connector
- RA4M1 from Renesas (Cortex-M4)
- HID device (emulate a mouse or a keyboard)
- Improved power section (up to 24 V through VIN)
- CAN bus
- DAC (12 bits)
- Op amp
- WiFi/Bluetooth LE
- Fully-addressable LED matrix (12x8)
- Qwiic I²C connector
- RTC (with support for a buffer battery)
- Runtime errors diagnostics
Comparaison Arduino Uno R3 et R4 Minima et Wifi
Arduino Uno R3 | Arduino Uno R4 Minima | Arduino Uno R4 Wifi | |
|---|---|---|---|
| Microcontroller | Microchip ATmega328P (8-bit AVR RISC) | Renesas RA4M1 (32-bit ARM Cortex-M4) | Renesas RA4M1 (32-bit ARM Cortex-M4) |
| Operating Voltage | 5v | 5v | 5v |
| Input Voltage | 6-20v | 6-24v | 6-24v |
| Digital I/O Pins | 14 | 14 | 14 |
| PWM Digital I/O Pins | 6 | 6 | 6 |
| Analog Input Pins | 6 | 6 | 6 |
| DC Current per I/O Pins | 20 mA | 8 mA | 8 mA |
| Clock Speed | 16 MHz | 48 MHz | 48 Mhz |
| Flash Memory | 32 KB | 256 KB | 256 KB |
| SRAM | 2 KB | 32 KB | 32 KB |
| USB | USB-B | USB-C | USB-C |
| DAC (12 bit) | --- | 1 | 1 |
| SPI | 1 | 2 | 2 |
| I2C | 1 | 2 | 2 |
| CAN | --- | 1 | 1 |
| Op amp | --- | 1 | 1 |
| SWD | --- | 1 | 1 |
| RTC | --- | --- | 1 |
| Qwiic I2C connector | --- | --- | 1 |
| LED Matrix | --- | --- | 12x8 (96 red LEDs)1 |
| LED_BUILTIN | 13 | 13 | 13 |
| Dimensions | 68,6 x 53,4 mm | 68,9 x 53,4 mm | 68,9 x 53,4 mm |
